Run Graphs in Dynamo Player

When you open a graph, nodes marked as Is Input show up in Player, and you can interact with them.

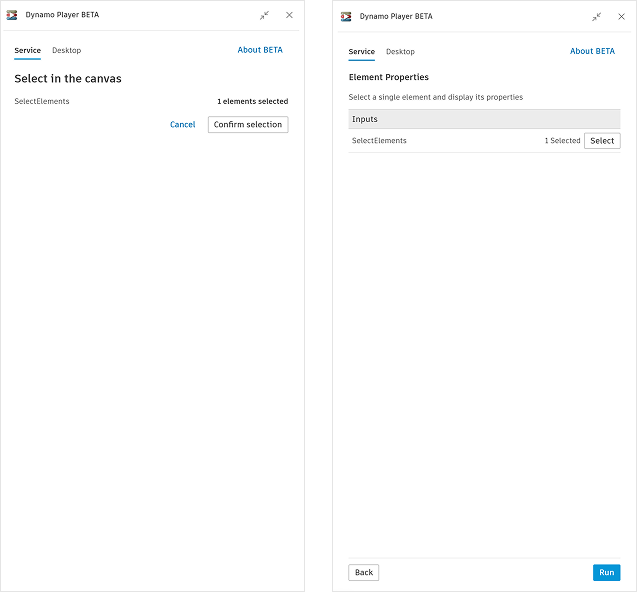

For some inputs, you will be taken to a selection mode where you can select elements in the scene. Click Confirm selection to accept the selection and go back to view the graph inputs.

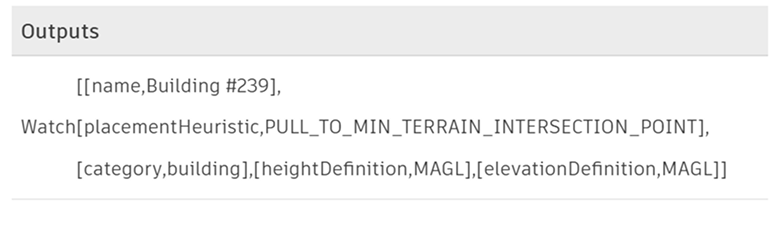

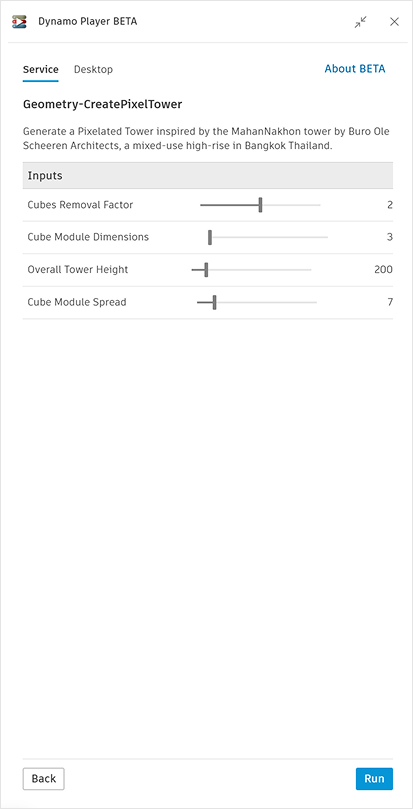

Click Run in Player to run your graph. Once it's done, Watch and Watch 3D nodes marked as Is Output will be displayed as follows:

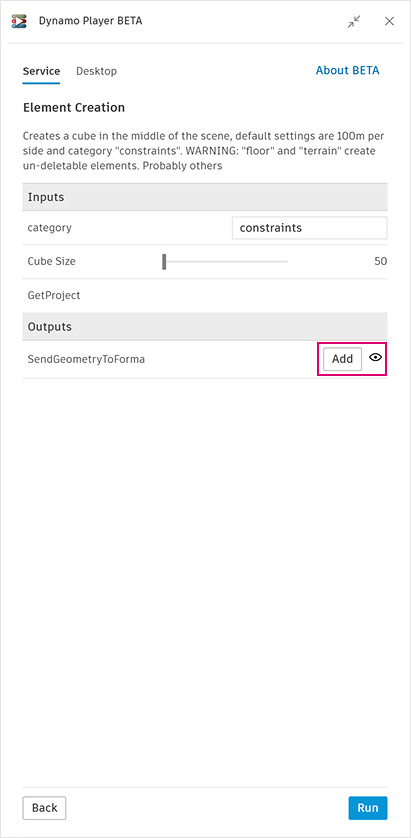

Graphs that generate geometry give you the option to preview and add the geometry to your site. Click the eye icon to turn preview on and off, then click Add to add the geometry to your site.
